PL®-Impregnation Table
Electric or manual fulling systems for impregnating the resin in the liner hose. Mobile, as installation or self-propelled.

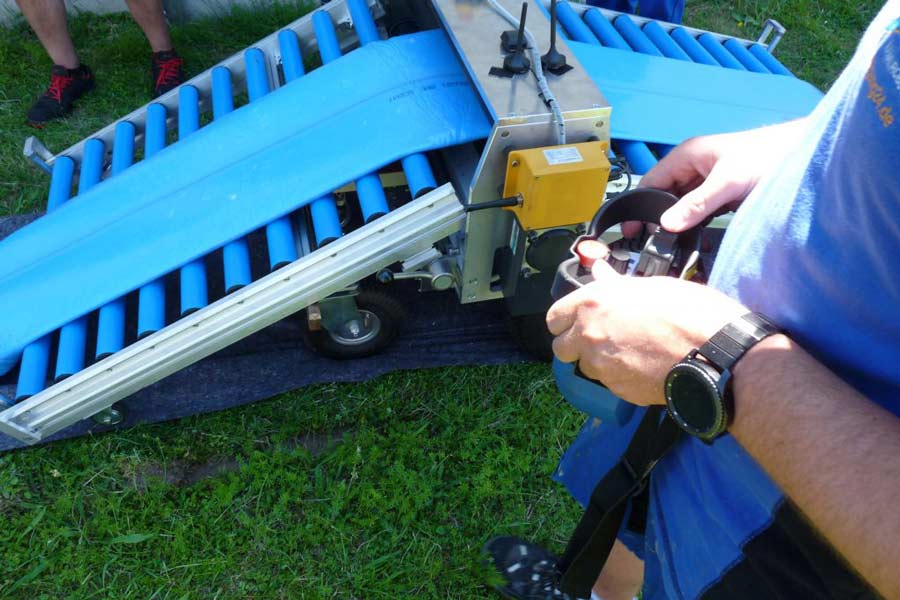

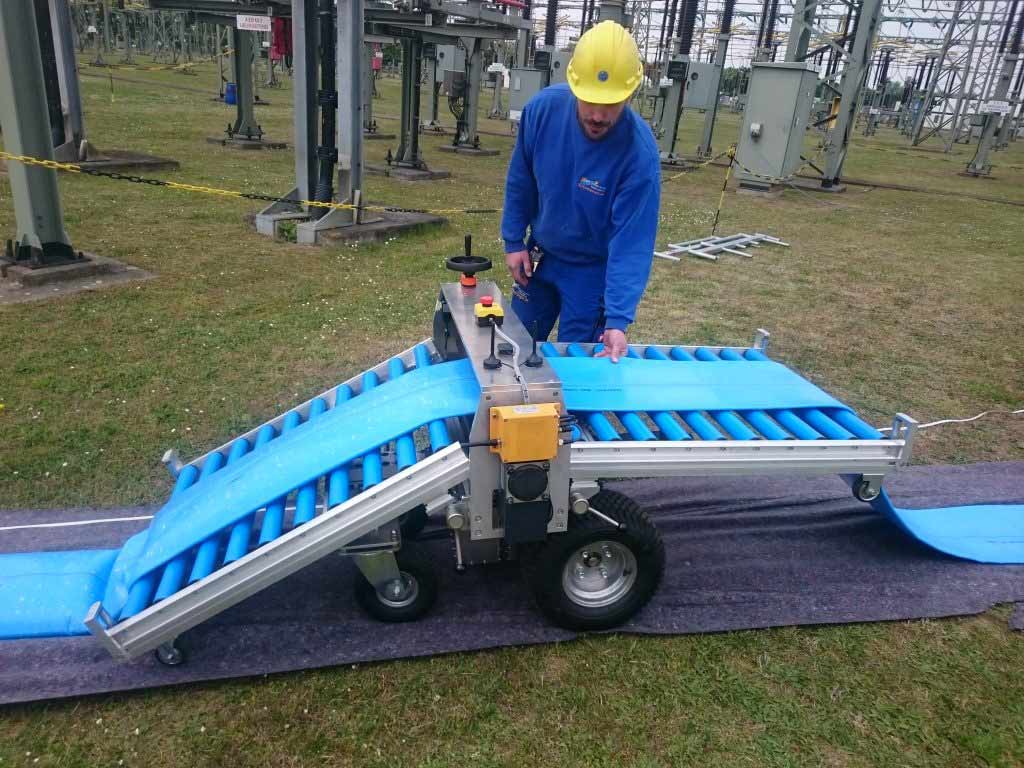

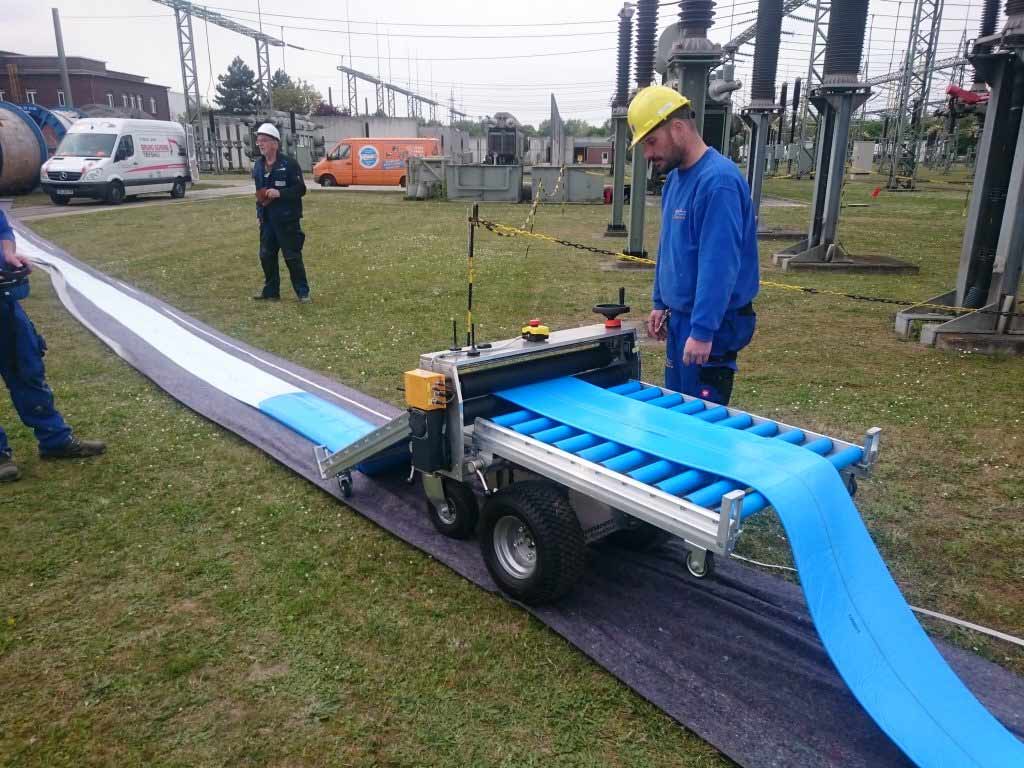

PL®-Impregnation Robot
The robot with assembled PL fulling system has been developed to tackle particularly demanding tasks with considerable weight. Even straight liners can be very heavy and require a great deal of force for curing. With this tool it is possible for one person alone to perform the fulling procedure. Remote-controlled and battery-operated.
We offer robots for rent for large projects.
manual PL®-Single Walkway
PL®-Impregnation Table 200
PL®-Impregnation Table 300
PL®-Impregnation Robot
| Manuell | 600 | 800 | Robots | |
| Length | 725mm | 1400mm | 1400mm | 1400mm |
| Width | 505mm | 800mm | 1000mm | 1000mm |
| Height | 525mm | 1370mm | 1370mm | 1370mm |
| Weight | 26kg | 90kg | 90kg | 110kg |
| Speed | Muskelkraft | 2,5 - 6,5 m/min | 2,5 - 6,5 m/min | sehr lansam - schnell |
| Max. surface width | 350mm | 400mm | 600mm | 600mm |
| Up to DN | 200 | 250 | 400 | 400 |
